100A 200A RW3 10KV 20KV 33KV High Voltage Drop Out Fuse

  • 1
  • 2
  • 3

Brand Name : XG

Model Number : RW3

Certification : ISO,CCC

Place of Origin : XIAN,CHINA

MOQ : 3-5 SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 SET

Delivery Time : 1-3DAYS

Packaging Details : WOODEN CASE

rated voltage : 10kv 20kv 33kv

rated current : 100a 200a

material : silicone or porcelain

phase : 3

life span : 15 YEARS

color : Gray

fuse element : Silver

standard : IEC282

Contact Now

1. RW3 Series 10KV 20KV 33KV High Voltage Cutout Fuse Drop Out Fuse
RW Series fuse is a switching device that breaks a circuit by melting the melt with its own heat when the current exceeds a specified value for a certain time. Drop fuse is a fuse that automatically drops the fuse piece after operation and forms a fracture. (HP)RW, (HP)RWG and HRC3 series dropout fuses are suitable for short circuit and overload protection of transmission lines and power transformers in ac 50Hz system with voltage of 10kV~35kV.
2. Technical Parameters
Product model
Rated voltage
(kV)
Rated current
(A)
Rated maximum breaking current
(kA)
1min Power-frequency withstand voltage
(kV)
BIL
(kV)
(H)RW3-12/100(200)
12
100/200
12.5/16
42
85
(H)RW7-12/100(200)
12
100/200
12.5/16
42
85
(H)RW10-12/100(200)
12
100/200
12.5/16
42
85
(H)RW11-12/100(200)
12
100/200
12.5/16
42
85
(HP)RW12-12/100(200)
12
100/200
12.5/16
42
85
HRW12-35/100(200)
35
100/200
12.5/16
95
185
(H)PRWG2-35/100(200)
35
100/200
12.5/16
95
185

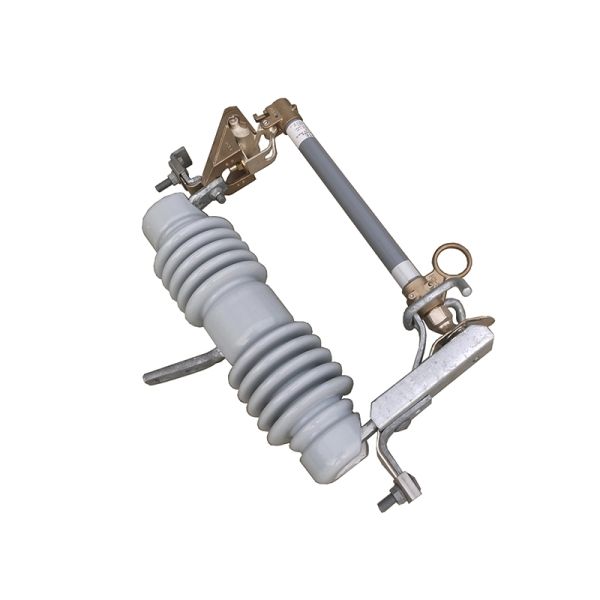

3. Photo

100A 200A RW3 10KV 20KV 33KV High Voltage Drop Out Fuse

100A 200A RW3 10KV 20KV 33KV High Voltage Drop Out Fuse

4. Delivery

100A 200A RW3 10KV 20KV 33KV High Voltage Drop Out Fuse

5. FAQ

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
